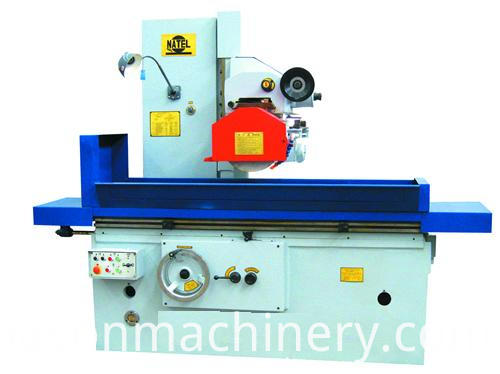

Precision Numerical Control Surface Grinder

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: FS640H

Type: Surface Grinding Machine

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Place Of Origin: Jiang Su(China)

Controlling Mode: CNC

Automatic Grade: Automatic

Model Number: FS640

Spindle Motor Power: 1.5KW

CNC Or Not: CNC

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

The horizontal type Grinding Machine tool table longitudinal adopts hydraulic transmission, the surface grinding head lateral movement can be liquid, can also manually. The grinding head vertical lift quick lifting mechanism on the original manual basis, improve production efficiency. the grinding machine is suitable for all kinds of mechanical processing, auto parts, fixture, mould parts, magnetic steel.


Features:

1. Moves smoothly and has reliable performance.

2. Low noise and stable accuracy.

3.Assembled with rapid elevating motor.

4.Which can reduce the intention of work labor as well as enhance the work efficiency.

5.The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically.



Main Specifications:

Max.size of worktable 1400*320*400 mm

Longitudinal movement of worktable(hydraulic) 1500 mm

Distance from spindle to worktable 575 mm

Vertical feeding for handwheel 1 mm per gra

Vertical feeding for handwheel 0.01 mm per rev

Max.cross movement grinder head 360 mm

Wheel head cross moving continuous feed speed 0.5-3 m/min

Wheel head cross moving intermittent feed speed 3-30 m/min

Rapid lifting motor power 0.37 kW

Speed of grinder head 1440 r/min

Wheel size(O.D*W*I.D) Φ350*40*Φ127

spindle motor power 5.5 kW

Power of oil pump motor 3 kW

Net weight 3500 Kg

Parallelism to basic surface 1000:0.015 mm

Surface roughness Ra0.63 µm

Dimension 2700*1640*2100 mm



The Grinding Machine




Looking for ideal Precision Surface Grinding Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Numerical Control Surface Grinder are quality guaranteed. We are China Origin Factory of CNC Grinding Machine. If you have any question, please feel free to contact us.
