Chuck Vertical CNC Lathe

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: CK516

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Floor-type

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Power(W): 18.5kW

Place Of Origin: Jiang Su(China)

Max. Swing Diameter: Φ800mm

Machine Type: CNC Lathe

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

The metal vertical machining with convenient clamping and good process adaptability.it can reduce the demand for skilled workers degree.Good consistency of finished products and easy system programming make the machine easy operation. it hold high-speed spindle,wide range of speed-changing,and the low noise.


Features:

1.Suitable for processing all kinds of complicated shapes of the shaft,sleeve and plate type parts.

2.Suitable for turning inside and outside cylindrical,conical surface,circular arc surface,grooving,drilling,ect.

3.especially suitable for many varieties,small bathe alternate processing.

4.Convenient clamping and good process adaptability can reduce the demand for skilled workers degree.

5.Good consistency of finished products and easy system programming make the machine easy operation.

6.Ideal mechanical equipment of processing complex short shaft type and auto plate type parts and other industries.


Main Specifications:

Max.swing over bed Φ800

Max.turning dia.of work piece 600mm

Spindle nose A2-11

Spindle bore Φ160

Spindle speed (12 gears) 45-1000 rpm

Spindle motor output 18.5kW

Chuck Φ500

Cross slide travel 550mm

Compound slide travel 650mm

Cross Slide Rapid Traverse 12m/min

Top Slide Rapid fast feed speed 12m/min

Spindle motor output 18.5kW

Motor of Cross Slide 2.5kW

Repeated positionging accuracy X:0.006/Z:0.01

Positioning accuracy X:0.018/Z:0.02

Dimensional accuracy IT6-IT7

Size of Tool Shank 32*32mm

Easy System Programming

Looking for ideal Metal Vertical Machining Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Good Consistency Of Finished Products are quality guaranteed. We are China Origin Factory of Easy System Programming. If you have any question, please feel free to contact us.

Product Categories : Lathe > CNC Lathe

Product Images

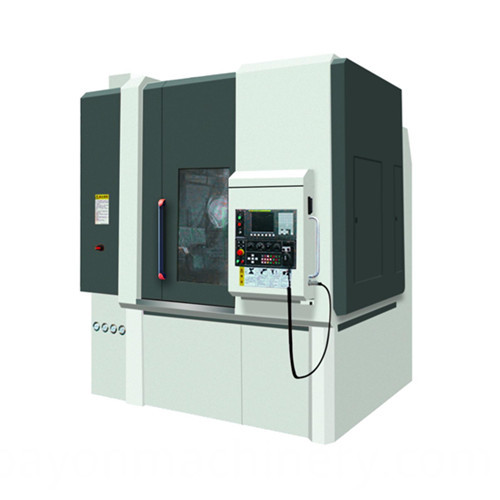

  • Chuck Vertical CNC Lathe
