Home > Products > Lathe > CNC Lathe > Metal Slant Bed Machine

Metal Slant Bed Machine

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: CXL-30D

Type: Horizontal Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Floor-type

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Machine Type: CNC Lathe

Place Of Origin: Jiang Su(China)

Weight: 1800kg

Max. Swing Diameter: Φ320

Dimension(L*W*H): 1800mm*1600mm*1600mm

Power Supply: 20KVA

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

The servo motors of the dynamic machine are connected with ball screws ,which is of short driving chain ,good servo accuracy.integrated base and bed ,ensure high accuracy and rigidity of machine.


Features:

1.Resin mold for the 45° integrated base and bed ,ensure high accuracy and rigidity of machine.

2.Adopting the independent and high-speed&high-precision spindle structure.

3.Bidirectional linear guideway from Taiwan.

4.imported linear guide way and spindle bearings of high rigidity and speed, low friction coefficient and long service life.


Main Specifications:

Max.swing over bed Φ320

Max.swing over slide Φ120
Recommended turning dia/length Φ235
Max.turning dia of work piece Φ220
Distance between centers 600 mm
Max .bar dia Φ35
Spindle nose A2-5
Spindle bore Φ41
Spindle speed 4200 r/min
Spindle motor output 4 kW
Chuck dia Φ160
Cross slide travel 280 mm
Compound slide travel 320 mm
Cross Slide Rapid fast feed speed 24 m/min
Top Slide Rapid fast feed speed 24 m/min
Tailstock quill dia/ travel Φ75/80 mm
Tailstock spindle taper MT5
Turret Type 80-8T
Size of Tool Shank(turing/boring) 20*20 mm
Processing accuracy IT6
Repeated positioning accuracy X:0.006/Z:0.006 mm
Surface roughness R≤0.800 um
CNC system SIEMENS828
Latest Lathe Machine

Looking for ideal The Dynamic Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Latest Lathe Machine are quality guaranteed. We are China Origin Factory of High Accuracy And Rigidity Of Machine. If you have any question, please feel free to contact us.

Product Categories : Lathe > CNC Lathe

Product Images

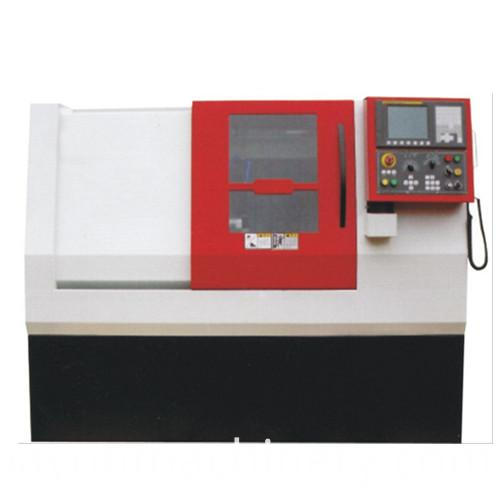

  • Metal Slant Bed Machine
