Floor Type CNC Lathe Machine

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: CXL-36

Type: Horizontal Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Floor-type

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Weight: 1700kg

Dimension(L*W*H): 1800*1600*1600mm

Power Supply: 20KVA

Machine Type: CNC Lathe

Place Of Origin: Jiang Su(China)

Max. Swing Diameter: Φ360

Collet Chuck Diameter: Φ100(CL-42)

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

The linear guideways Cnc Lathe with 30 degrees slant bed.Spindle motor output is 3.7kW.The CNC Lathe Machine has the advantage of Reliable structure, convenient operation, economical and practical capacity.


Features:

1.30 degrees slant bed.

2.Adopting the high-speed&high-precision sleeve type spindle structure.

3.Feed shaft with high accuracy and rigidity .

4.Particularly suitable for the high-precision, large quantity, difficult process turning and Various types of shaft parts.

5.The servo motors are connected with ball screws ,which is of short driving chain ,good servo accuracy.


Main Specifications:

Max.swing over bed Φ360

Max.swing over slide Φ160
Recommended turning dia/length Φ155/250 mm
Max.turning dia of work piece Φ254
Distance between centers 350 mm
Max.bar dia Φ45
Spindle nose A2-5
Spindle bore Φ56
Spindle speed 4200 r/min
Spindle motor output 3.7 kW
Chuck dia Φ160
Cross slide travel 200 mm
Compound slide travel 350 mm
Cross Slide Rapid fast feed speed 24 m/min
Top Slide Rapid fast feed speed 24 m/min
Tailstock quill dia/travel Φ52/60 mm
Tailstock spindle taper MT4
Turret Type 63-8T
Size of Tool Shank(turing/boring) 20*20 mm/Φ25
Processing accuracy IT6
Repeated positioning accuracy X:0.006/Z:0.006 mm
Surface roughness R≤0.800 um
CNC system SIEMENS828
Linear Guideways CNC Lathe

Looking for ideal Spindle Motor Output Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Linear Guideways CNC Lathe are quality guaranteed. We are China Origin Factory of High-speed Horizontal Hydraulic Turret. If you have any question, please feel free to contact us.

Product Categories : Lathe > CNC Lathe

Product Images

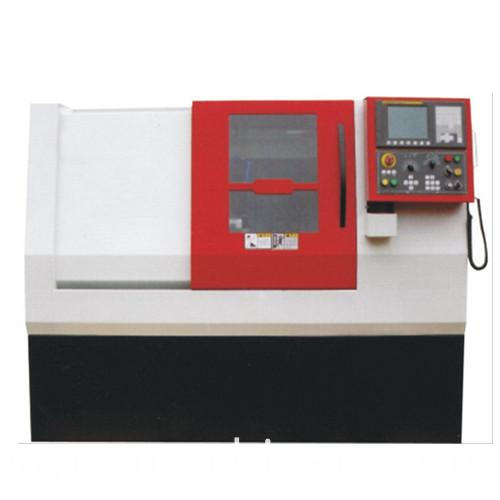

  • Floor Type CNC Lathe Machine
