CNC Milling Machines

Share to:

Basic Info

Model No.: VM850

Controlling Mode: CNC

Automatic Grade: Automatic

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Place Of Origin: Jiang Su(China)

CNC System: FANUC

Machine Type: Jiang Su(China)

Weight: 5500kg

Overall Dimension: 2700*2300*2600mm

Product Description

Product description:

The 3 axis high-precision CNC milling machines is the automatic tool changer which has the high quality casting iron. It is of the computer numerical control machine tools.This high rigidity Cnc Milling Machine has the high speed and high precision spindle with a direct mount for minimal noise.


Features:

1.Super strong rigidity,super heavy bed casting,machine more steable and realiable.

2.Quenched table.

3.Humanity illumination to avoid eyesight mistake.

4.Bob-weighting/liquid nitrogen choice.



Main Specifications:

Table Worktable area 1050×500mm

T-slot size 5×18mm×75mm

Max.table load 600kg

Travel X axis travel 800mm

Y axis travel 500mm

Z axis travel 500mm

Gantry through width 850mm

Feed Rapid feedrate(X/Y/Z) S:12/L:24m/min

Cutting feedrate(X/Y/Z) 5/5/5m/min

Spindle Spindle speed 50~8000rpm

Spindle taper BT40

Spindle motor power 7.5kW

Spindle nose to table 130-630mm

Accuracy Positioning accuracy ±0.008mm

Repeat positioning accuracy ±0.005mm

ATC ATC type disc type

Tool magazine capacity 24T

Max.tool diameter(w/o adjacent tools) Ф78/Ф120

Max.tool weight 8KG

Tool change time T to T 3 sec

ATC ATC type disc type

Tool magazine capacity 24T

Max.tool diameter(w/o adjacent tools) Ф78/Ф120

Max.tool weight 8KG

Tool change time T to T 3 sec

High-precision CNC Milling Machines

Looking for ideal High-precision CNC Milling Machines Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the The High-Capacity Spindle are quality guaranteed. We are China Origin Factory of High Quality Milling Machines. If you have any question, please feel free to contact us.

Product Categories : Milling Machine > CNC Milling Machine

Product Images

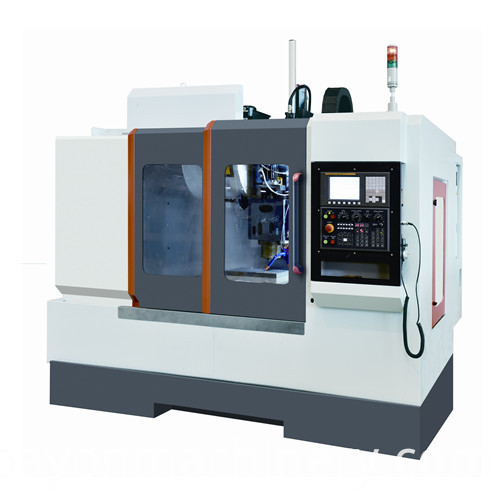

  • CNC Milling Machines
