Horizontal Axis Moments Surface Grinder

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: M7130B

Type: Surface Grinding Machine

Abrasives: Grinding Wheel

Controlling Mode: Artificial

Automatic Grade: Manual

Precision: Precision

Certification: ISO 9001

Condition: New

Model Number: M7130B

Spindle Motor Power: 5.5KW

Warranty: 12 Monthes

CNC Or Not: Normal

Place Of Origin: Jiang Su(China)

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

The horizontal type Grinding Machine tool table longitudinal adopts hydraulic transmission, the surface grinding head lateral movement can be liquid, can also manually. The grinding head vertical lift quick lifting mechanism on the original manual basis, improve production efficiency. the grinding machine is suitable for all kinds of mechanical processing, auto parts, fixture, mould parts, magnetic steel.


Features:

1. Moves smoothly and has reliable performance.

2. Low noise and stable accuracy.

3.Assembled with rapid elevating motor.

4.Which can reduce the intention of work labor as well as enhance the work efficiency.

5.The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically.


Main Specifications:

Max.size of worktable 1400*320*400mm

Longitudinal movement of worktable(hydraulic) 1500mm

Distance from spindle to worktable 575mm

Vertical feeding for handwheel 1mm per gra

Vertical feeding for handwheel 0.01mm per rev

Max.cross movement grinder head 360mm

Wheel head cross moving continuous feed speed 0.5-3m/min

Wheel head cross moving intermittent feed speed 3-30m/min

Rapid lifting motor power 0.37kW

Speed of grinder head 1440r/min

Wheel size(O.D*W*I.D) Φ350*40*Φ127

spindle motor power 5.5kW

Power of oil pump motor 3kW

Net weight 3500Kg

Parallelism to basic surface 1000:0.015mm

Surface roughness Ra0.63µm

Dimension 2700*1640*2100mm



The Grinding Machine




Looking for ideal The Surface Grinding Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the The Grinding Machine are quality guaranteed. We are China Origin Factory of Horizontal Type Grinding Machine. If you have any question, please feel free to contact us.

Product Categories : Grinding Machine > Grinding Machine

Product Images

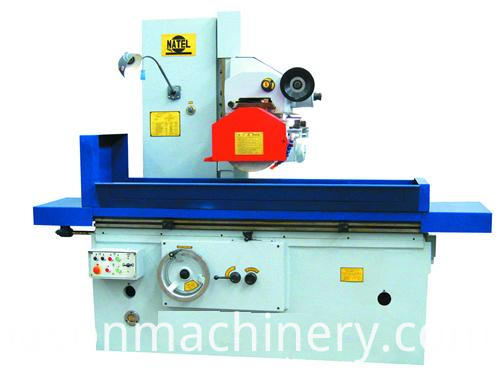

  • Horizontal Axis Moments Surface Grinder
