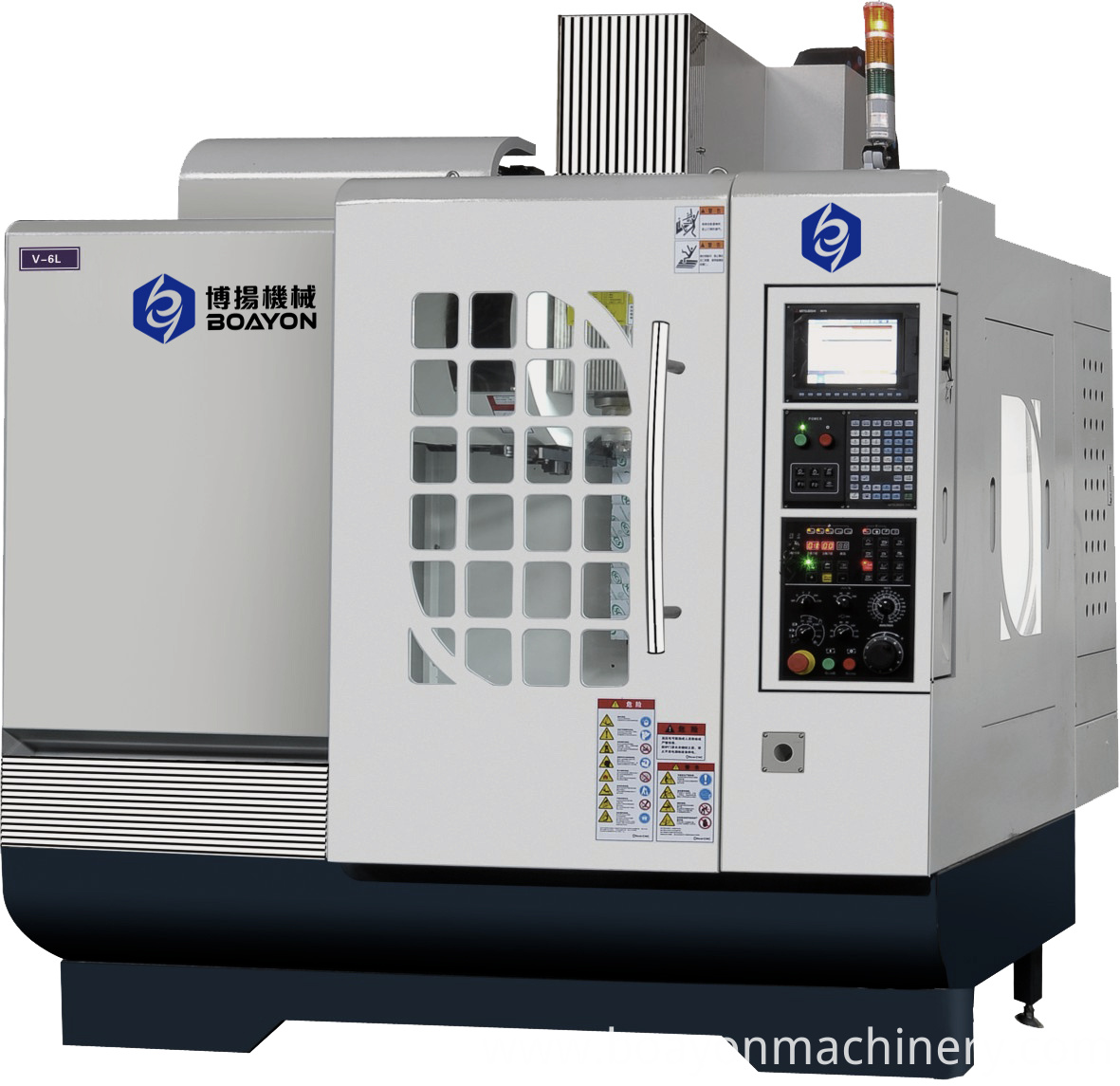

High-speed Vertical Machining Center

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: V-6L

Type: Horizontal Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Floor-type

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Machine Type: CNC Lathe

Place Of Origin: Jiang Su(China)

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

This precision CNC machine which adopt the high-speed& high-precision spindle.high-precision gear cutting tools and drilling and tapping give us accurate positioning and efficient transmission.Precision linear guide-way,stable structure,ensure the stability of machine tool for long use.it has large tool magazine capacity and high strength cast iron for fuselage and main components.


Features:

1. Adopting the high-speed& high-precision spindle(8000/12000RPM).

2. Stable internal mechanical structure and excellent processing function.

3. Suit for processing auto parts and communication aluminium alloy cavity

4. Ultra high-speed/high performance/high-precision drilling and tapping.

5. Tapping speed reach 6000RPM and X/Y/Z axis speed up to 50M/MIN.

6. Long traverse length,satisfies different processing needs on a large scale.

7. High strength cast iron for fuselage and main components.

8. Stable structure,ensure the stability of machine tool for long use.


Main Specifications:

Table Worktable area 700×420 mm

T-slot size 18×3×125 mm

T-slot accuracy grade H7

Max.table load 300 kg

Travel X axis travel 600 mm

Y axis travel 400 mm

Z axis travel 450 mm

Spindle nose to worktable surface 170-620 mm

Spindle center to column 456 mm

Spindle / Feed Spindle transmission Method Belt type

Spindle speed 50-10000 rpm

Spindle taper /Latin specification BT-40/(MAS403-BT40)

Spindle bore/Latin specification Φ120/(MAS403-45)

Cutting feedrate(X/Y/Z) 1~20000 mm/min

Rapid feedrate(X/Y/Z) X:48000/Y:48000/Z:48000 mm/min

Accuracy Positioning accuracy 300 mm±0.005

Position repeatability 300 mm±0.003

ATC ATC type Cutter arm type

Tool changer method Random

Tool magazine capacity 20 T

Tool change time T to T 1.8 sec

Max.tool diameter(full) 80 mm

Max.tool diameter(W/O adjacent tools) 100 mm

Max.tool weight 8 KG

Max.tool length 200 mm

Tool Magazine Capacity

Looking for ideal Precision CNC Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Tool Magazine Capacity are quality guaranteed. We are China Origin Factory of Precision Linear Guide-way. If you have any question, please feel free to contact us.

Product Categories : Machining Center

Product Images
  • High-speed Vertical Machining Center
