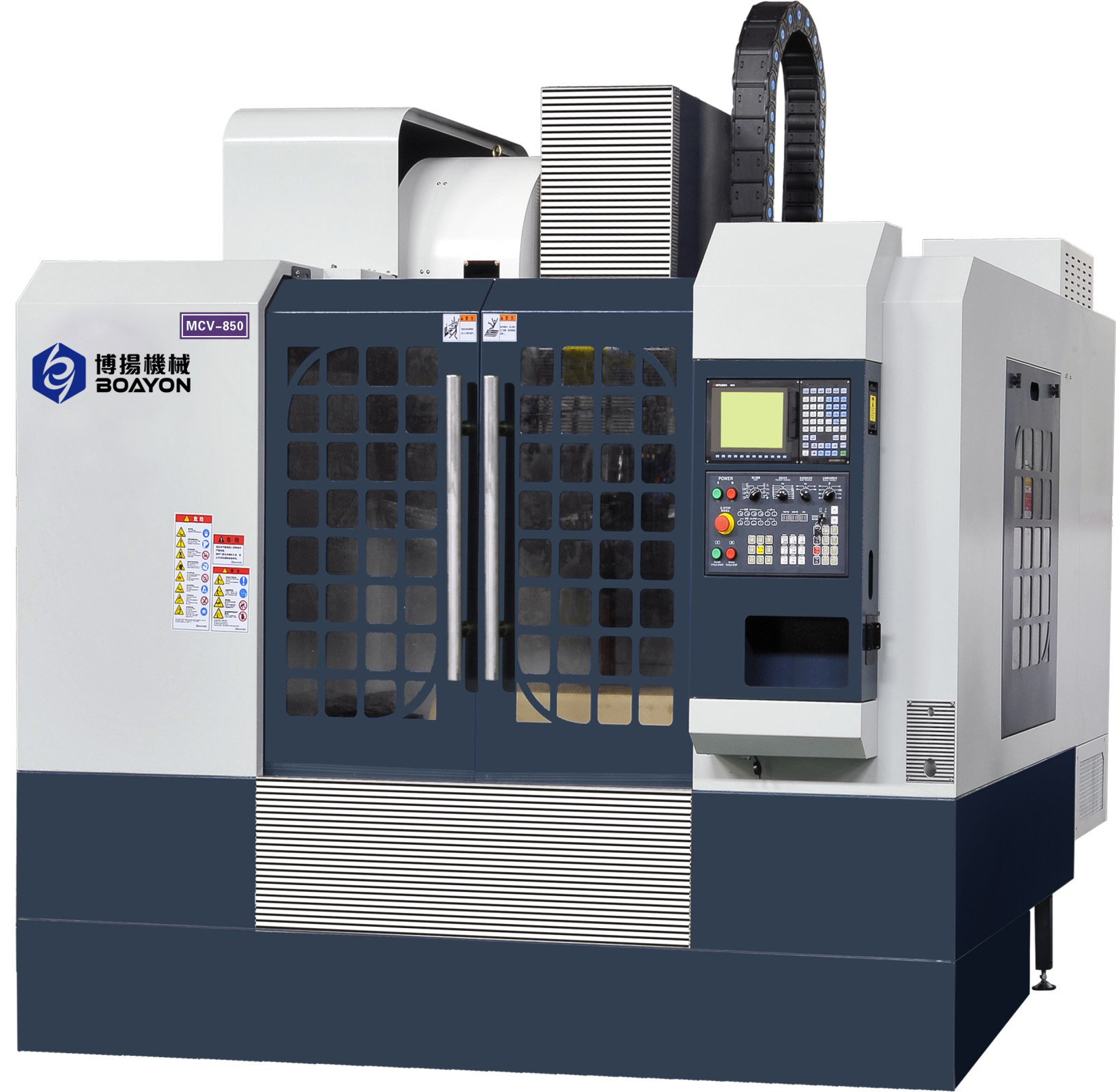

High Quality Vertical Machining Center

Share to:
    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF

Basic Info

Model No.: MCV850

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Floor-type

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Machine Type: CNC Lathe

Place Of Origin: Jiang Su(China)

Type: Vertical Lathe

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

 High quality machine tool with high-speed and high precision spindle,the servo motors are connected with ball screws,which is of short driving chain,good servo accuracy. Long traverse length,satisfies different processing needs on a large scale.


Features:

1. Adopting the high-speed& high-precision spindle(8000/12000RPM).

2. Stable internal mechanical structure and excellent processing function.

3. Suit for processing auto parts and communication aluminium alloy cavity

4. Ultra high-speed/high performance/high-precision drilling and tapping.

5. Tapping speed reach 6000RPM and X/Y/Z axis speed up to 50M/MIN.

6. Long traverse length,satisfies different processing needs on a large scale.

7. High strength cast iron for fuselage and main components.

8. Stable structure,ensure the stability of machine tool for long use.


Main Specifications:

Table            Worktable area                                   1000×530 mm

                    T-slot size                                          18×5×100 mm

                    T-slot accuracy grade                           H7

                    Max. table load                                    600 kg

Travel            X axis travel                                        800 mm

                    Y axis travel                                        500 mm

                    Z axis travel                                        700 mm

                    Spindle nose to worktable surface          110-810 mm

                    Spindle center to column                      580 mm

Spindle/Feed  Spindle transmission Method                  Belt type

                    Spindle speed                                     50-8000 rpm

                    Spindle taper /Latin specification            BT-40/(MAS403-BT40)

                    Spindle bore/Latin specification              Φ150/(MAS403-45)

                    Cutting feedrate(X/Y/Z)                       1~20000 mm/min

                    Rapid feedrate(X/Y/Z)                          X:20000/Y:20000/Z:20000 mm/min

Accuracy        Positioning accuracy                             300mm±0.005

                    Position repeatability                             300mm±0.003

ATC              ATC type                                            Cutter arm type

                    Tool Changer  Method                          Random

                    Tool Magazine Capacity                          24 T

                    Tool Change Time                                T to T 2.2 sec

                    Max.Tool Diameter(full)                         80 mm

                    Max.Tool Diameter(W/O adjacent tools)  120 mm

                    Max.Tool Weight                                  8 KG

                    Max.Tool Length                                  300 mm

Optional Accessory Of Auto Chip Conveyor

Looking for ideal High-speed And Precision Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the High Quality Machine Tool are quality guaranteed. We are China Origin Factory of Good Servo Accuracy. If you have any question, please feel free to contact us.

Product Categories : Machining Center

Product Images
  • High Quality Vertical Machining Center
