Home > Products > Machining Center > CNC Vertical Machining Center

CNC Vertical Machining Center

Share to:
    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF

Basic Info

Model No.: T-5

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Floor-type

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Machine Type: CNC Lathe

Place Of Origin: Jiang Su(China)

Type: Vertical Lathe

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

This series of machine is high-Precisly machining centre which adopt the high-speed& high-precision spindle.High-precision gear cutting tools and drilling and tapping give us accurate positioning and efficient transmission.T Slot Cutter Dimensions is 14×3×100mm,Stable structure,ensure the stability of machine tool for long use.


Features:

1. Adopting the high-speed& high-precision spindle(8000/12000RPM).

2. Stable internal mechanical structure and excellent processing function.

3. Suit for processing auto parts and communication aluminium alloy cavity

4. Ultra high-speed/high performance/high-precision drilling and tapping.

5. Tapping speed reach 6000RPM and X/Y/Z axis speed up to 50M/MIN.

6. Long traverse length,satisfies different processing needs on a large scale.

7. High strength cast iron for fuselage and main components.

Main Specifications:

Table            Worktable area                                  650×400mm

                    T-slot size                                         14×3×100mm

                    T-slot accuracy grade                          H7

                    Max. table load                                  220kg

Travel            X axis travel                                       500mm

                    Y axis travel                                       400mm

                    Z axis travel                                       350mm

                    Spindle nose to worktable surface         170-520mm

                    Spindle center to column                     450mm

Spindle/Feed  Spindle transmission Method                  Belt type

                    Spindle speed                                     20-15000-20000 rpm

                    Spindle taper /Latin specification            BT-30/(MAS403-BT30)

                    Spindle bore/Latin specification              Φ100/(MAS403-45)

                    Cutting feedrate(X/Y/Z)                       1~20000mm/min

                    Rapid feedrate(X/Y/Z)                          X:60000/Y:60000/Z:60000 mm/min

Accuracy        Positioning accuracy                            300mm±0.005

                    Position repeatability                            300mm±0.003

ATC              ATC type                                           Cutter arm type

                   Tool changer method                           Random

                   Tool magazine capacity                         16

                   Tool change time                                T to T1.6-1.8 sec

                   Max.tool diameter(full)                         80mm

                   Max.tool diameter(W/O adjacent tools)  100mm

                   Max.tool weight                                  2KG

                   Max.tool  length                                  150mm

High-Precisly Machining Centre

Looking for ideal High-Precisly Machining Centre Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Gear Cutting Tools are quality guaranteed. We are China Origin Factory of T Slot Cutter Dimensions. If you have any question, please feel free to contact us.

Product Categories : Machining Center

Product Images

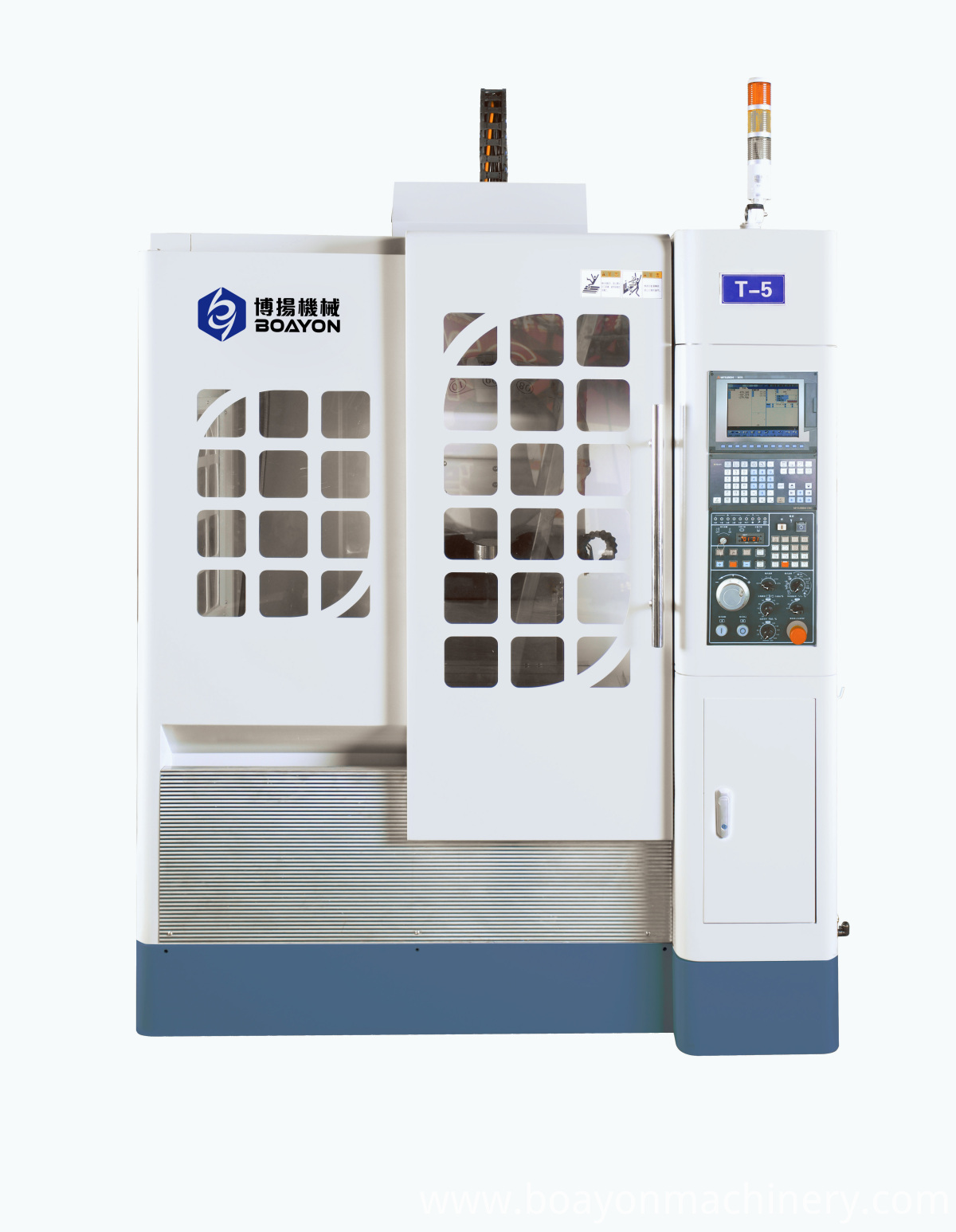

  • CNC Vertical Machining Center
