Precision Linear Guide-way Lathe

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: T-6

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Floor-type

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Machine Type: CNC Lathe

Place Of Origin: Jiang Su(China)

Type: Vertical Lathe

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

The Cnc vertical turning center is high-Precisly machining centre which adopt the high-speed& high-precision spindle.high-precision gear cutting tools and drilling and tapping give us accurate positioning and efficient transmission.Strong Rigid Casting Steel Lathe,Stable structure,ensure the stability of machine tool for long use.we provide product images and basic parameters with each Machine Center when you want to know about how to use Vertical Machining Center.


Features:

1. Adopting the high-speed& high-precision spindle(8000/12000RPM).

2. Stable internal mechanical structure and excellent processing function.

3. Suit for processing auto parts and communication aluminium alloy cavity.

4. Ultra high-speed/high performance/high-precision drilling and tapping.

5. Tapping speed reach 6000RPM and X/Y/Z axis speed up to 50M/MIN.

6. Long traverse length,satisfies different processing needs on a large scale.

7. High strength cast iron for fuselage and main components.

8. Stable structure,ensure the stability of machine tool for long use.


Main Specifications:

Table Worktable area 700×420 mm

T-slot size 18×3×105 mm

T-slot accuracy grade H7

Max. table load 250 kg

Travel X axis travel 600 mm

Y axis travel 400 mm

Z axis travel 350 mm

Spindle nose to worktable surface 200-550 mm

Spindle center to column 465 mm

Spindle/Feed Spindle transmission Method Belt type

Spindle speed 20-15000-20000 rpm

Spindle taper /Latin specification BT-30/(MAS403-BT30)

Spindle bore/Latin specification Φ100/(MAS403-45)

Cutting feedrate(X/Y/Z) 1~20000 mm/min

Rapid feedrate(X/Y/Z) X:48000/Y:48000/Z:48000 mm/min

Accuracy Positioning accuracy 300mm±0.005

Position repeatability 300mm±0.003

ATC ATC type Cutter arm type

Tool Changer Method Random

Tool Magazine Capacity 16 T

Tool Change Time T to T1.6-1.8 sec

Max.Tool Diameter(full) 80 mm

Max.Tool Diameter(W/O adjacent tools) 100 mm

Max.Tool Weight 2 KG

Max.Tool Length 150 mm

Cnc Vertical Turning Center

Looking for ideal Cnc Vertical Turning Center Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the How To Use Vertical Machining Center are quality guaranteed. We are China Origin Factory of Strong Rigid Casting Steel Lathe. If you have any question, please feel free to contact us.

Product Categories : Machining Center

Product Images

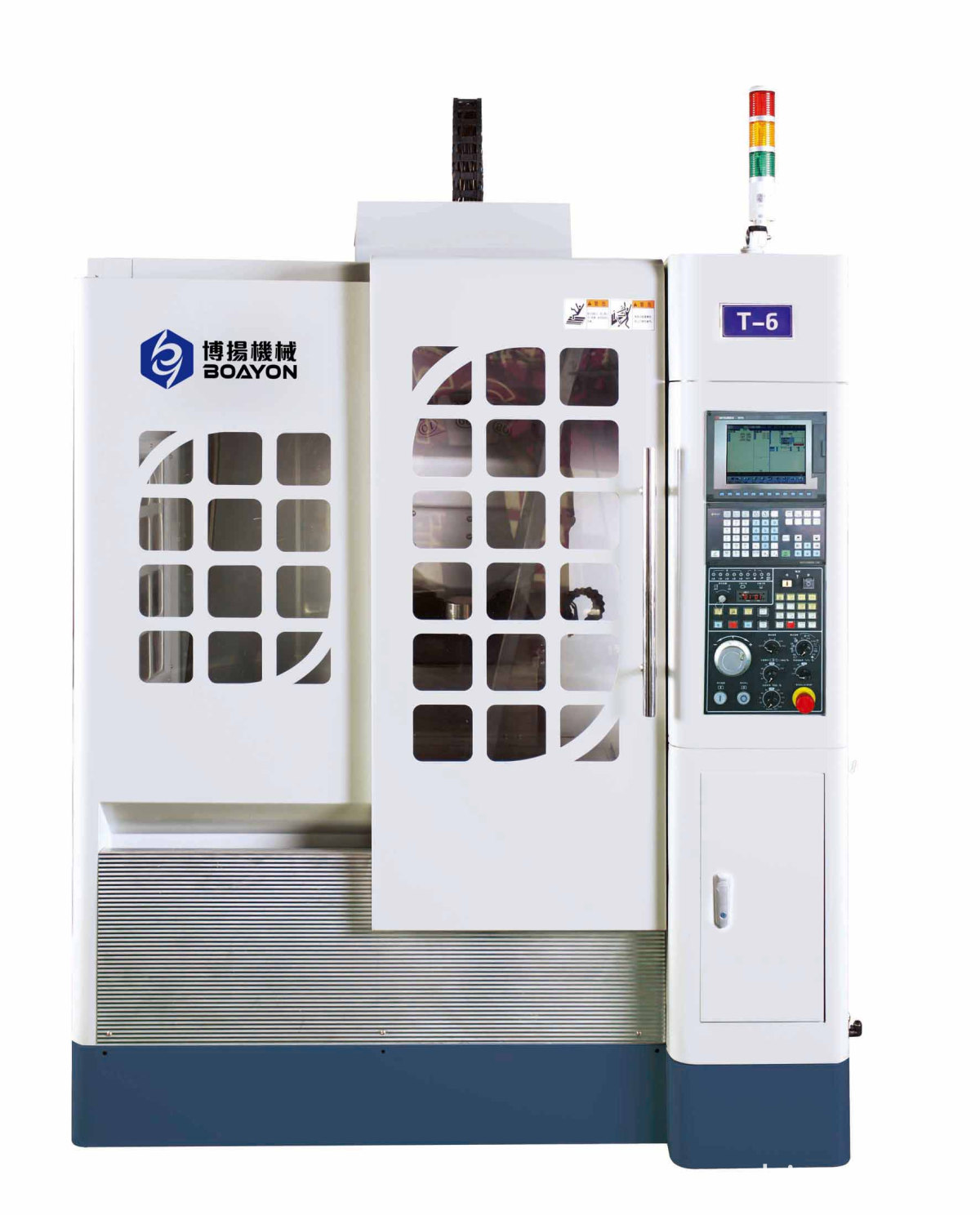

  • Precision Linear Guide-way Lathe
