High Rigidity Machining Center Hurco

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: V-11L

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Floor-type

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Machine Type: CNC Lathe

Place Of Origin: Jiang Su(China)

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

The high-Speed CNC Vertical Machining Center is equipped with the high precision spindle. The 3 Axis Machining with high accuracy and rigidity feed shaft.Fanuc system Cnc Lathe with precision linear guides.


Features:

1. Adopting the high-speed& high-precision spindle(8000/12000RPM).

2. Stable internal mechanical structure and excellent processing function.

3. Suit for processing auto parts and communication aluminium alloy cavity

4. Ultra high-speed/high performance/high-precision drilling and tapping.

5. Tapping speed reach 6000RPM and X/Y/Z axis speed up to 50m/min.

6. Long traverse length,satisfies different processing needs on a large scale.

7. High strength cast iron for fuselage and main components.

8. Stable structure,ensure the stability of machine tool for long use.


Main Specifications:

Table Worktable area 1200×600mm

T-slot size 18×5×100mm

T-slot accuracy grade H7

Max.table load 800kg

Travel X axis travel 1000mm

Y axis travel 600mm

Z axis travel 600mm

Spindle nose to worktable surface 120-720mm

Spindle center to column 650mm

Spindle/Feed Spindle transmission Method Belt type

Spindle speed 50-8000 rpm

Spindle taper /Latin specification BT-40/(MAS403-BT40)

Spindle bore/Latin specification Φ140/(MAS403-45)

Cutting feedrate(X/Y/Z) 1~20000mm/min

Rapid feedrate(X/Y/Z) X:36000/Y:36000/Z:36000 mm/min

Accuracy Positioning accuracy 300mm±0.005

Position repeatability 300mm±0.003

ATC ATC type Cutter arm type

Tool Changer Method Random

Tool Magazine Capacity 24 T

Tool Change Time T to T 2.2 sec

Max.Tool Diameter(full) 80mm

Max.Tool Diameter(w/o adjacent tools) 120mm

Max.Tool Weight 8KG

Max.Tool Length 300mm

FANUC System Cnc Lathe Machine

Looking for ideal CNC Vertical Machine Center Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the The 3 Axis Machining are quality guaranteed. We are China Origin Factory of FANUC System Cnc Lathe Machine. If you have any question, please feel free to contact us.

Product Categories : Machining Center

Product Images

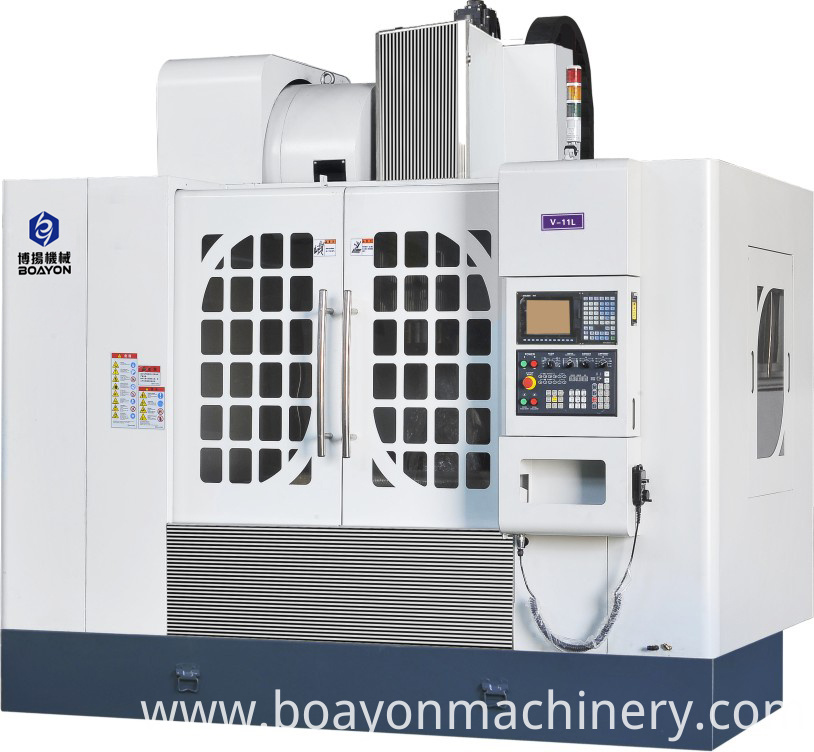

  • High Rigidity Machining Center Hurco
