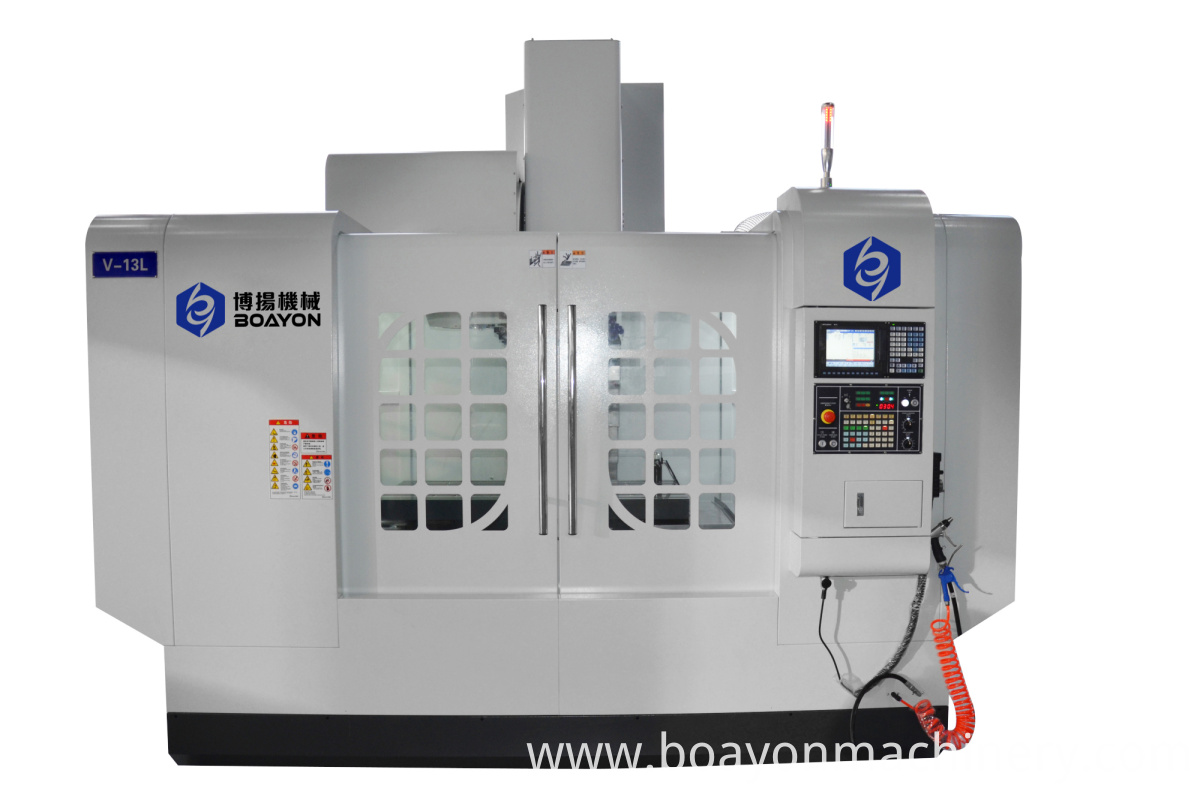

Metal Vertical Machining Center

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: V-13L

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Floor-type

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Machine Type: CNC Lathe

Place Of Origin: Jiang Su(China)

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

V-13L is the Lathe turning machine designed for industries that demand high precision,high productivity application. CNC machine axis and high-precision gear cutting tools and drilling and tapping give us accurate positioning and efficient transmission.it has large tool magazine capacity with 24 seats.


Features:

1. Adopting the high-speed& high-precision spindle(8000/12000RPM).

2. Stable internal mechanical structure and excellent processing function.

3. Suit for processing auto parts and communication aluminium alloy cavity.

4. Ultra high-speed/high performance/high-precision drilling and tapping.

5. Tapping speed reach 6000RPM and X/Y/Z axis speed up to 50M/MIN.

6. Long traverse length,satisfies different processing needs on a large scale.

7. High strength cast iron for fuselage and main components.

8. Stable structure,ensure the stability of machine tool for long use.


Main Specifications:


Table Worktable area 1400×700 mm

T-slot size 18×6×100 mm

T-slot accuracy grade H7

Max.table load 1000 kg

Travel X axis travel 1300 mm

Y axis travel 700 mm

Z axis travel 700 mm

Spindle nose to worktable surface 120-820 mm

Spindle center to column 755 mm

Spindle/Feed Spindle transmission Method Belt type

Spindle speed 50-8000 rpm

Spindle taper /Latin specification BT-40/(MAS403-BT40)

Spindle bore/Latin specification Φ150/(MAS403-45)

Cutting feedrate(X/Y/Z) 1~20000 mm/min

Rapid feedrate(X/Y/Z) X:24000/Y:24000/Z:24000 mm/min

Accuracy Positioning accuracy 300mm±0.005

Position repeatability 300mm±0.003

ATC ATC type Cutter arm type

Tool changer method Random

Tool magazine capacity 24 T

Tool change Time T to T 2.2 sec

Max.tool diameter(full) 80 mm

Max.tool diameter(w/O adjacent tools) 120 mm

Max.tool weight 8 KG

Max.tool length 300 mm

Good Quality Turning Machine



Looking for ideal Tool Magazine With 24 Seats Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Machine Axis are quality guaranteed. We are China Origin Factory of Good Quality Turning Machine. If you have any question, please feel free to contact us.
