Home > Products > Machining Center > 11/15KW Machining Center Hurco

11/15KW Machining Center Hurco

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: MCV1165

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Floor-type

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Machine Type: CNC Lathe

Place Of Origin: Jiang Su(China)

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

High quality machine center has optional accessory of auto chip conveyor,3 axes with rectangular which can give us accurate positioning and efficient transmission. Gear Cutter Set is high rigidity and good reliability.


Features:

1. Adopting the high-speed& high-precision spindle(8000/12000RPM).

2. Stable internal mechanical structure and excellent processing function.

3. Suit for processing auto parts and communication aluminium alloy cavity

4. Ultra high-speed/high performance/high-precision drilling and tapping.

5. Tapping speed reach 6000RPM and X/Y/Z axis speed up to 50M/MIN.

6. Long traverse length,satisfies different processing needs on a large scale.

7. High strength cast iron for fuselage and main components.

8. Stable structure,ensure the stability of machine tool for long use.


Main Specifications:

Table Worktable area 1200×625 mm

T-slot size 18×5×100 mm

T-slot accuracy grade H7

Max. table load 700 kg

Travel X axis travel 1100 mm

Y axis travel 650 mm

Z axis travel 600 mm

Spindle nose to worktable surface 120-720 mm

Spindle center to column 710 mm

Spindle/Feed Spindle transmission Method Belt type

Spindle speed 50-8000 rpm

Spindle taper /Latin specification BT-40/(MAS403-BT40)

Spindle bore/Latin specification Φ150/(MAS403-45)

Cutting feedrate(X/Y/Z) 1~20000 mm/min

Rapid feedrate(X/Y/Z) X:20000/Y:20000/Z:20000 mm/min

Accuracy Positioning accuracy 300mm±0.005

Position repeatability 300mm±0.003

ATC ATC type Cutter arm type

Tool Changer Method Random

Tool Magazine Capacity 24 T

Tool Change Time T to T 2.2 sec

Max.Tool Diameter(full) 80 mm

Max.Tool Diameter(W/O adjacent tools) 120 mm

Max.Tool Weight 8KG

Max.Tool Length 300 mm

Optional Accessory Of Auto Chip Conveyor

Looking for ideal Optional Accessory Of Auto Chip Conveyor Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 3 Axes With Rectangular are quality guaranteed. We are China Origin Factory of Gear Cutter Set. If you have any question, please feel free to contact us.

Product Categories : Machining Center

Product Images

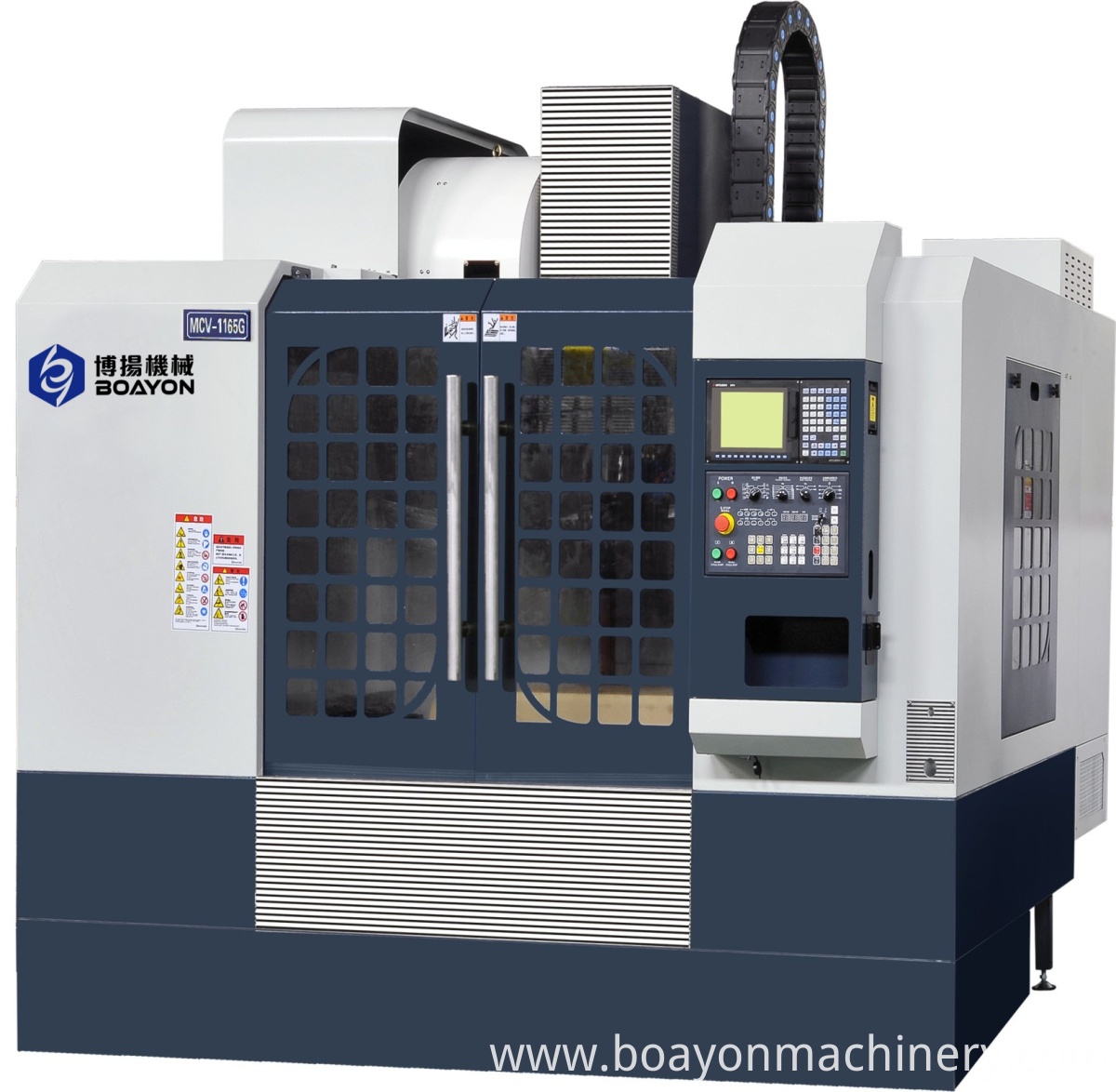

  • 11/15KW Machining Center Hurco
