Competitive CNC Vertical Machining Center

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: MCV-1690

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Floor-type

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Machinery Type: CNC Lathe

Place Of Origin: Jiang Su(China)

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

Through machine coolant pumps,high-performance oil spindle bearing, can control temperature rise effectively.Main structure uses the rice khan,so we provide high rigidity of the machine.


Features:

1. Adopting the high-speed& high-precision spindle(8000/12000RPM).

2. Stable internal mechanical structure and excellent processing function.

3. Suit for processing auto parts and communication aluminium alloy cavity

4. Ultra high-speed/high performance/high-precision drilling and tapping.

5. Tapping speed reach 6000RPM and X/Y/Z axis speed up to 50M/MIN.

6. Long traverse length,satisfies different processing needs on a large scale.

7. High strength cast iron for fuselage and main components.

8. Stable structure,ensure the stability of machine tool for long use.


Main Specifications:

Table Worktable area 1700×850 mm

T-slot size 22×5×150 mm

T-slot accuracy grade H7

Max. table load 1500 kg

Travel X axis travel 1600 mm

Y axis travel 900 mm

Z axis travel 800 mm

Spindle nose to worktable surface 150-950 mm

Spindle center to column 950 mm

Spindle/Feed Spindle transmission Method Belt type

Spindle speed 50-6000 rpm

Spindle taper /Latin specification BT-50/(MAS403-BT50)

Spindle bore/Latin specification Φ190/(MAS403-45)

Cutting feedrate(X/Y/Z) 1~20000 mm/min

Rapid feedrate(X/Y/Z) X:15000/Y:15000/Z:15000 mm/min

Accuracy Positioning accuracy 300mm±0.005

Position repeatability 300mm±0.003

ATC ATC type Cutter arm type

Tool changer method Random

Tool magazine capacity 24 T

Tool change time T to T 2.2 sec

Max.tool diameter(full) 150 mm

Max.tool diameter(W/O adjacent tools) 120 mm

Max.tool weight 15 KG

Max.tool length 300 mm

Provide High Rigidity Of The Machine

Looking for ideal Machine Coolant Pumps Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Main Structure Uses The Rice Khan are quality guaranteed. We are China Origin Factory of Machine Coolant Pumps. If you have any question, please feel free to contact us.

Product Categories : Machining Center

Product Images

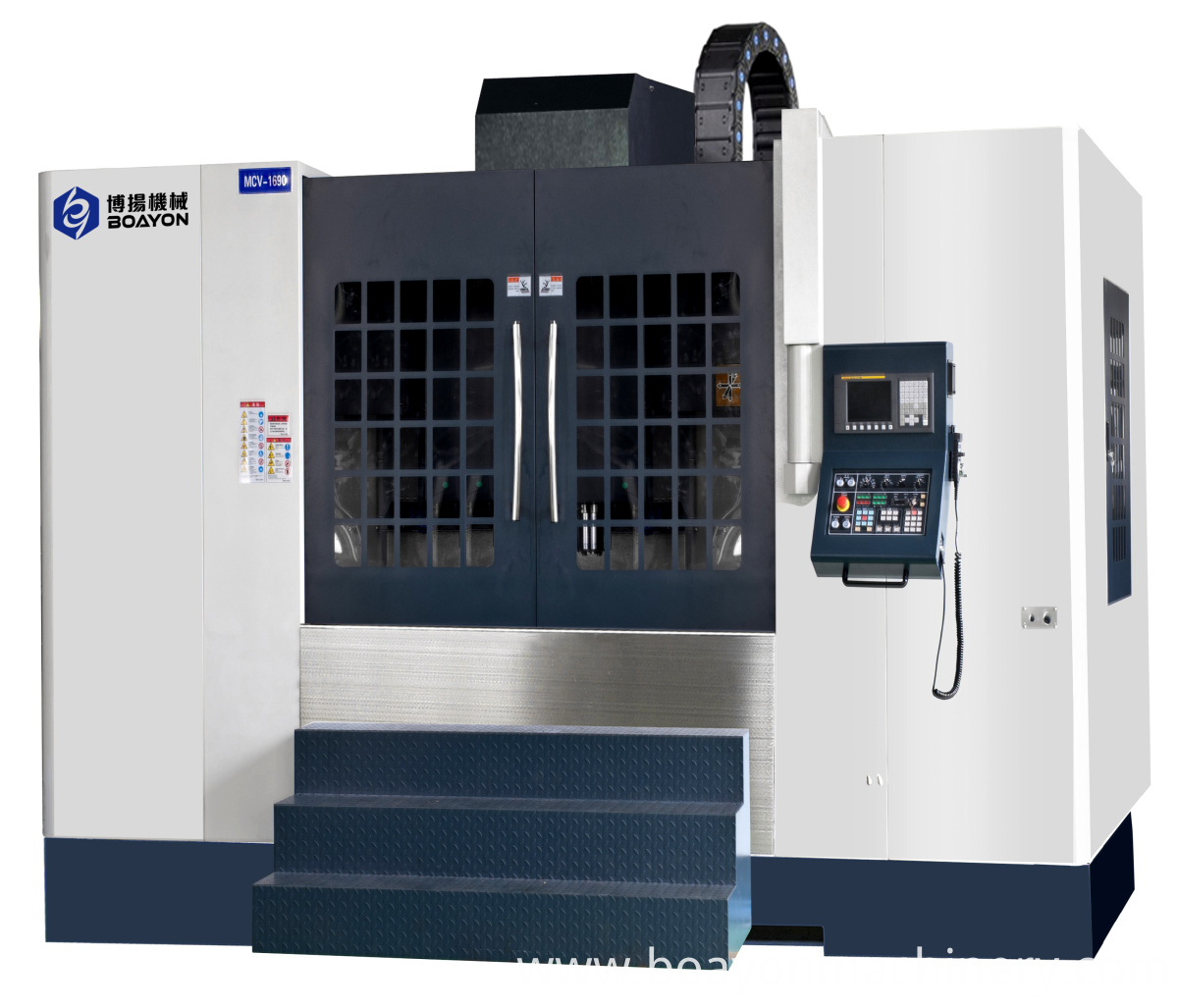

  • Competitive CNC Vertical Machining Center
