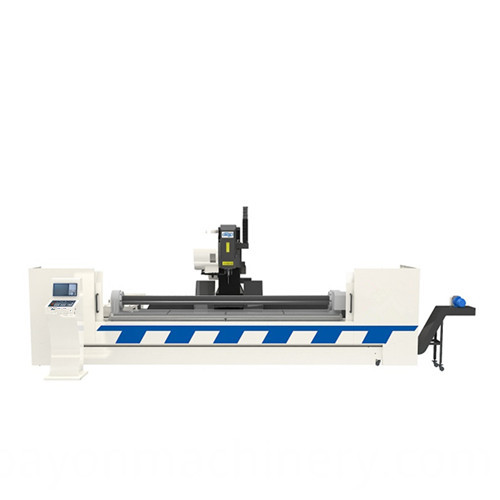

CNC Profile Machining Center

Share to:

Basic Info

Model No.: XHC600-(2250/2685)A (B)

Controlling Mode: CNC

Automatic Grade: Automatic

Precision: Precision

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Place Of Origin: Jiang Su(China)

Weight: 7000/8000kg

CNC System: MITSUBISHI

Overall Dimension: (6000/6500)×3000×2500 Mm

Product Description

Product description:

The high precision CNC profile Machining Center using advanced industrial CNC systems, friendly human-machine interface,with cast iron bed,which is designed for precise operations such as milling,drilling and tapping.it is suitable for various lengths of aluminium,copper,thin steel and other metal profiles.

Features:

1.Tapping,drilling and milling functions.

2.Suitable for various lengths of aluminium,copper,thin steel and other metal profiles.

3.The Machine tool Lathe bed , column and slides adopt high tensile mcast iron.

4.Equipped with automatic chip removal machine.

5.Adopting the large diameter and chip box ensure fluent chip disposal and easy chip removal.

6.The machine adopt strong rigidity structure design.

7.The Y/Z axis configures high precision grinding ball-screw.

8.X axis uses ball-screw so that position is accurate.

9.Can use the tool magazine achieving automatic changing tool machining,The fourth axis turntable machine accessories.


Main specifications:

Travel X axis travel 2250/3000 mm

Y axis travel 600 mm

Z axis travel 550 mm

Spindle Spindle speed 10000/12000/15000 rpm

Spindle taper BT40

Spindle drive power 7.5 kW

Tool Tool magazine capacity 24T

Tool change time 2 sec

Speed X axis speed 20~50 m/min

Y/Z axis speed 48 m/min

Accuracy Positioning precision of X ±0.02 mm(A) ±0.01 mm(B)

Positioning precision of Y/Z ±0.01 mm

The CNC Profile Machining Center






Looking for ideal High Precision CNC Profile Machining Center Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the With Cast Iron Bed are quality guaranteed. We are China Origin Factory of The CNC Profile Machining Center. If you have any question, please feel free to contact us.
