Model No.: WE67K-1500/6000
Controlling Mode: CNC
Automatic Grade: Automatic
Certification: ISO 9001
Warranty: 12 Monthes
Place Of Origin: Jiang Su(China)
Packaging: To Be Specified
Place of Origin: China
Certificate: ISO 9001, CE

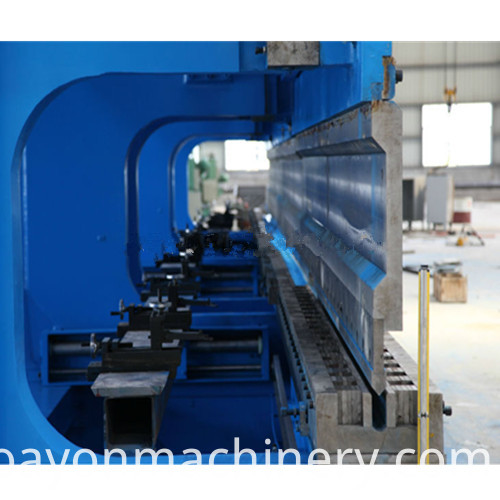

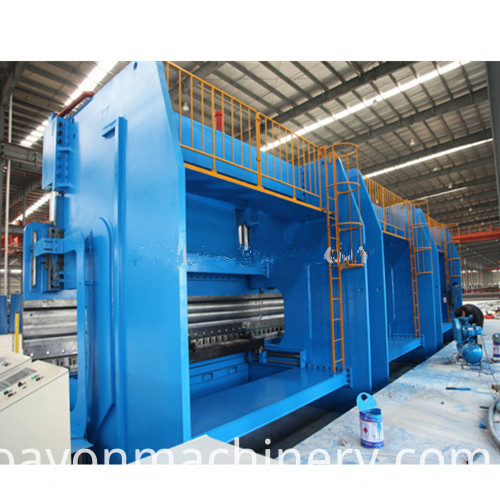

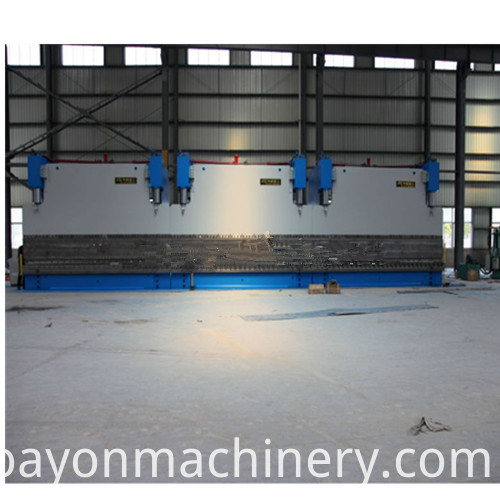

The production line of this lamp-post is made up of two sets WC67K-1250/7500 DA52 double-cylinder hydraumatic ,2-sets-tandem bending machine of the same sepcifictaion.The high-precisly tandem press brake could process the longer workpiece ,especially in city buildings ,the highway lamp post , shot power , automotiveframe , and so longer worpiece on.
1.It adopts welded-steel plate construction ,so eliminate stress by vibration ageing.
2.The machine tool is made up of rack ,table ,slider , master cylinder and rear stopper .
3.The completely design an manufacturing process ,can ensure the manufacture and the operational precision of the tool .
4.Slide action design , ensures work stability ,safety ,and convenience .
5.The lead rail adopts advanced self-lubricating material .No need to lubricating maintenance.
Pressure 3*5000 KN
Lenght of worktable 3*6000 mm
Distance between the columns 4800 mm
Slide stroke 600 mm
Max.open height between slides 1500 mm
Motor power 3*45 KW
Control axies number 3+1 axies
CNC system DA56W
Product Categories : Press Brake
