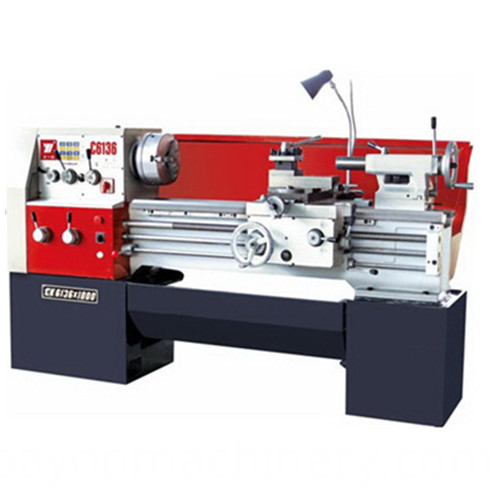

New Lathe Machine With Precision ground

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: CK6236

Type: Horizontal Lathe

Guide Rail: Horizontal Guide Rail

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Certification: ISO 9001

Condition: New

Weight: 1300KG

Warranty: 12 Monthes

Dimension(L*W*H):: 2100mm*1100mm*1600mm

Power(W): 5.5KW

Machine Type: Lathe

Place Of Origin: Jiang Su(China)

Model Number: CK6236

Max.Swing Diameter: 320mm

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

The good accuracy and conventional Lathe mathine which has reliable structure,convenient operation,economical and practical capacity.And the new Lathe Machine with gap bed and high speed lathe machine.


Features:

1.It is of large through hole,high speed good accuracy spindle system.

2.Gap bed.

3.Supersonic frequency hardened bed ways and precision ground.

4.Machine are made of high intensional cast iron with good aseismatic and high rigidity.

5.Precision roller bearing for spindle.


Main Specifications:

Max.swing over bed Φ320

Max.swing over cross slide Φ170

Max.swing in bed gap Φ510

Distance between centers 750 mm

Bed width 290 mm

Spindle nose C-6

Spindle taper MT6

Spindle bore Φ52

Spindle speed 30-1600 rpm(12 gears)

Spindle motor output 5.5 kw

Tailstock quill travel 100 mm

Tailstock spindle taper MT4

Spindle motor (power) 5.5 kw

Threads (imperial) 80~1-3/4nt/in(35)

Threads (metric) 0.45~20 mm

Longitudinal feed 0.039~1.1 mm

Cross feed 0.018~0.55 mm

Spindle motor output 5.5 kw

Chuck Φ200 3-jaw

New Lathe Machine With Gap Bed

Looking for ideal High Speed Lathe Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the New Lathe Machine With Gap Bed are quality guaranteed. We are China Origin Factory of Good Accuracy Conventional Lathe Mathine. If you have any question, please feel free to contact us.
