Home > Products > Lathe > Universal Lathe > High Rigidity Lathe Machine

High Rigidity Lathe Machine

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF

Basic Info

Model No.: CDS6236

Type: Horizontal Lathe

Guide Rail: Horizontal Guide Rail

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Manual

Certification: ISO 9001

Condition: New

Warranty: 12 Monthes

Max. Swing Diameter: Φ320

Machine Type: Lathe

Place Of Origin: Jiang Su(China)

Power(W): 2.2/3.3KW

Dimensions: 1600mm*1850mm*2110mm

Additional Info

Packaging: To Be Specified

Transportation: Ocean

Place of Origin: China

Certificate: ISO 9001, CE

Product Description

Product description:

The series of machine whose appearance conforms to the principle of economics and easy to operation.they are precision spindle Lathe,if you want to konw what is a metal lathe,we have the product images and basic parameters with each Lathe Machine and good machine tool services.


Features:

1.Big spindle bore and hardened and ground guideway.

2.Light lathe bed and brand-new design exterior.

3.Head stock machine, feed box with oil pump lubrication.

4.High-frequency quenching Guide rail hardness: HRC50, Depth 1.5mm.

5.Main motor is double - speed motor, unable to offer dual voltage.

6.Head stockwith mechanical clutch or electromagnetic clutch.


Main Specifications:


Max.swing over bed Φ360

Max.swing over cross slide Φ220

Max.swing in bed gap Φ560

Effective length in gap 138 mm

Distance between centers 500 mm/750 mm/1000 mm

Bed width 280 mm

Spindle nose D6

Spindle bore Φ52

Spindle speed 59-2100 rpm

Spindle motor (power) 2.2/3.3 KW

Tailstock quill travel 125 mm

Tailstock spindle taper M4

Threads (imperial) 56~2 (52)

Threads (metric) 0.4~14(40)


Machine Tool Services



Looking for ideal With Precision Spindle Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the What Is A Metal Lathe are quality guaranteed. We are China Origin Factory of Machine Tool Services. If you have any question, please feel free to contact us.

Product Categories : Lathe > Universal Lathe

Product Images

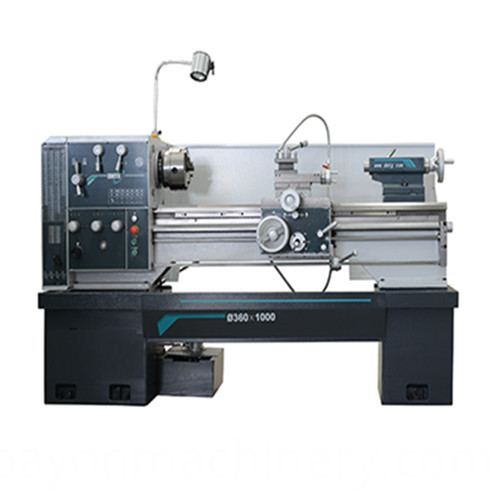

  • High Rigidity Lathe Machine
